Smart Differential Pressure Transmitter

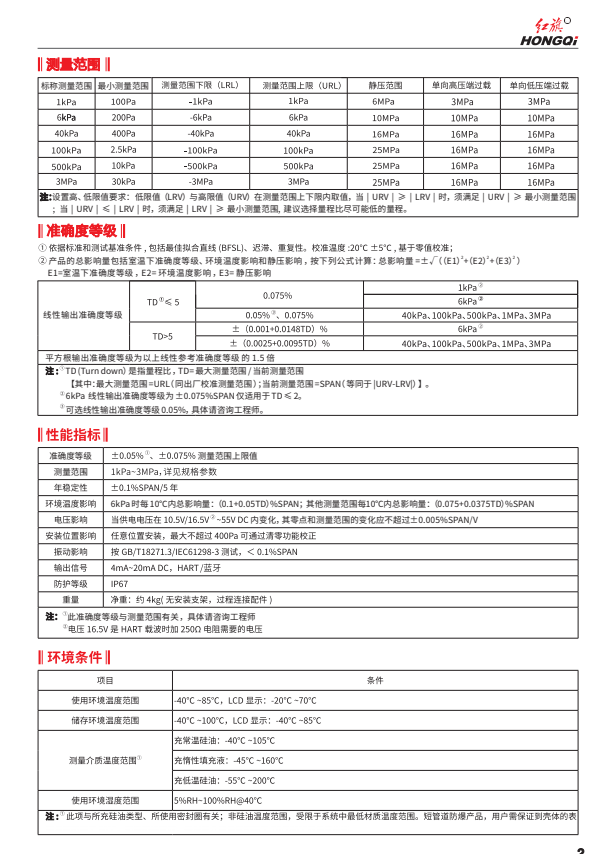

◆ Pressure Range: (0–1) kPa to (0–3) MPa;
◆ Accuracy Class: ±0.05% FS, ±0.075% FS;
◆ Long-Term Stability: ≤0.1% SPAN / 5 years;
◆ Protection Rating: IP67;
◆ Pressure Connection: Process connection adapters (or customized according to customer requirements);
◆ Media Compatibility: Various fluids that are non-corrosive to stainless steel and fluororubber;
◆ Output: Two-wire system: (4–20) mA DC + HART + Bluetooth.
Product Description
The HQB-3000-DP Smart Pressure Transmitter is a high-precision, high-stability pressure measurement product independently designed and manufactured by our company. It features an imported monocrystalline silicon sensor chip combined with dedicated digital circuitry. Through signal amplification, linearity correction, anti-interference processing, and surge protection, it delivers standard industrial output signals in an integrated design. The transmitter supports BLE 5.0, allowing users to connect directly via a smartphone app to view and modify parameters.
